Based on Hexagon Geospatial Mobile SDK, a touch friendly Geospatial Portal mobile application is available out of the box. The app can display 2D Consumer layout maps that can be accessed through either a URL or QR Code. The app is available for iOS, Android and Windows mobile platforms.
Features include:
Display pre-defined maps
Turn on/off layers, change opacity for particular layer
Locate yourself on the map
Search features on map
Retrieve selected feature information
Use QR Code reader to scan QR Codes associated with Consumer layout to access the map
Support for operating systems (both tablets and smartphones):
iOS, version 11 or later
Android, version 4.4 or later
Windows, version 10
Mobile Layout for Geospatial Portal

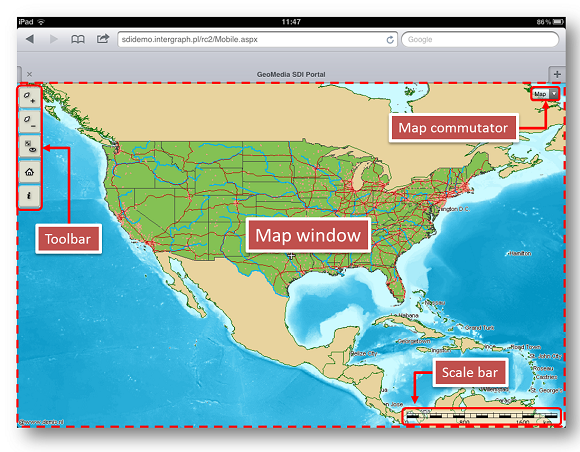

The main elements of Geospatial Portal mobile layout include:
Map window – Where all maps and spatial data is displayed.
Tool bar – All buttons for mobile Geospatial Portal are grouped on the left side of the screen.
Map commutator – A drop-down list that contains all available predefined maps.
Scale bar – Shows the actual map scale.

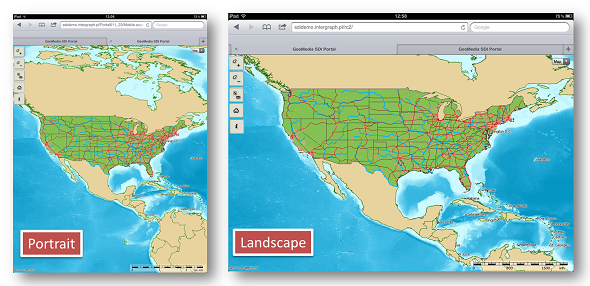

Geospatial Portal works with both landscape and portrait orientation. Simply rotate the device to change the layout orientation. The layout is adjusted automatically.
